Series 1450
CONVEYOR ROLLER SERIES 1450

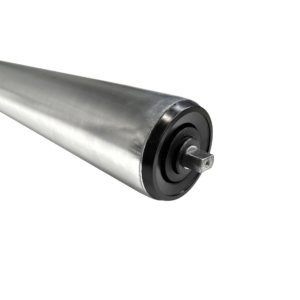

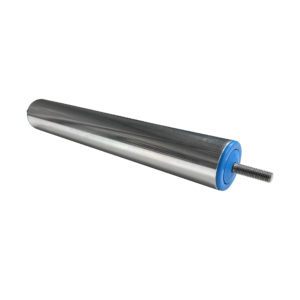

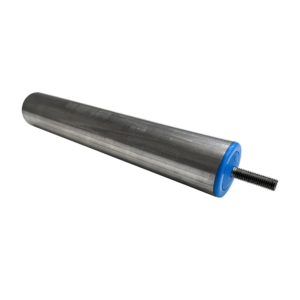

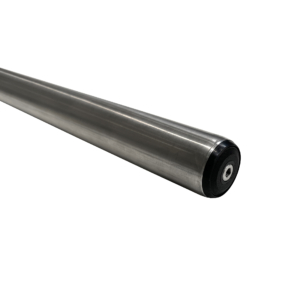

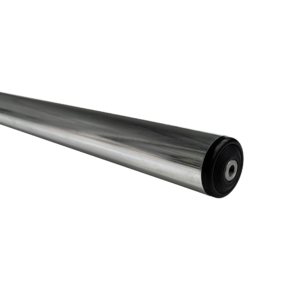

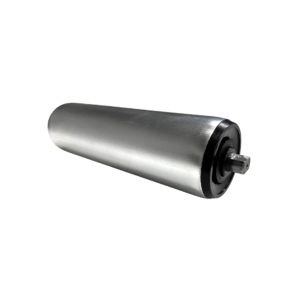

Series 1450: This type is available with either metal or plastic bearings. This is the most colourful type, where you can choose from 40 mm to 108 mm in diameter. Food industry versions are also available. We recommend it for medium loads, but rollers with a load capacity of up to 250-300 kg are also available.
.
Gravity roller |
||||||
| Name | Bearing material | Tube material | Tube diameter-wall thickness (D=) mm | Tube length (L=) mm | Shaft material | Shaft (d=) mm |
| SERIES 1450 D000 L0000 d00 S00 | POM | Steel | 40x1,50 | (55-1500) | Steel | 8, 10, 12, SW11, 14 |
|
POM | Steel | 50x1,50 | (55-1500) | Steel | 8, 10, 12, SW11, 14, 15 |
| POM | Steel | 50x2,00 | (55-1500) | Steel | 8, 10, 12, SW11, 14, 15 | |
| POM | PVC | 50x2,80 | (55-1500) | Steel | 8, 10, 12, SW11, 14, 15 | |
| POM | Steel | 60x1,50 | (55-1500) | Steel | 10, 12, SW11, 14, 15, 17 | |
| POM | Steel | 60x2,00 | (55-1500) | Steel | 10, 12, SW11, 14, 15, 17 | |
| POM | Steel | 63x2,90 | (60-1500) | Steel | 12, SW11, 15, 20 | |
| POM | Steel | 80x2,00 | (60-1500) | Steel | 12, SW11, 15, 20 | |
| POM | Steel | 89x3,00 | (103-2500) | Steel | 17, 20 | |
| POM | PVC | 90x700 | (103-1000) | Steel | 17, 20 | |
| POM | Steel | 108x3,00 | (103-2500) | Steel | 17, 20 | |
.
CONVEYOR ROLLER SERIES 1450 S
.
Gravity roller |
||||||
| Name | Bearing material | Tube material | Tube diameter-wall thickness (D=) mm | Tube length (L=) mm | Shaft material | Shaft (d=) mm |
| SERIES 1450S D000 L0000 d00 S00 | Steel | Steel | 50x1,50 | (55-1500) | Steel | 10, 12, SW11,15 |
|
Steel | Steel | 60x1,50 | (55-1500) | Steel | 10, 12, SW11,15 |
| Steel | Steel | 60x2,00 | (55-1500) | Steel | 10, 12, SW11,15 | |
| Steel | Steel | 70x3,00 | (55-1500) | Steel | 17 | |
| Steel | Steel | 80x2,00 | (55-2500) | Steel | 17 | |
| Steel | Steel | 80x2,00 | (55-2500) | Steel | 20 | |
| Steel | Steel | 89x3,00 | (55-2500) | Steel | 20 | |
| Steel | Steel | 108x3,00 | (55-2500) | Steel | 20 | |
